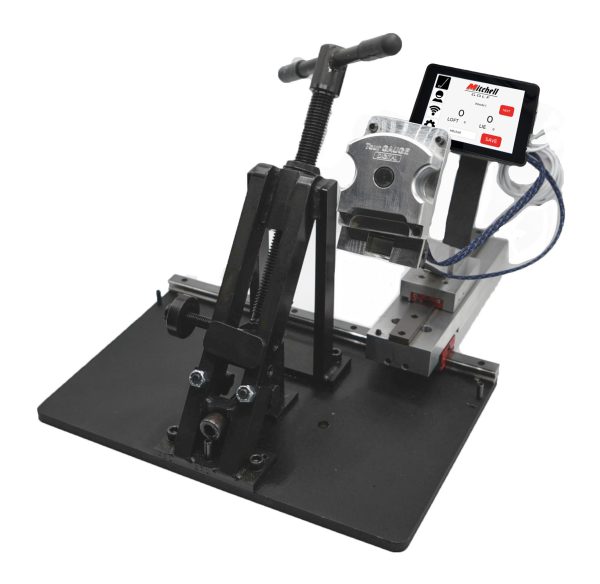

Mitchell Golf TourGauge Digital Irons Machine

Mitchell® Machines – #1 On Tour Worldwide – 29 Years

This golf club measuring gauge utilizes a precision slide-bearing gauge assembly that tracks on a precision ground slide rail for measuring both right- and left-hand irons. Loft and lie measurements are recorded in 1/4° increments in the LED Digital display. Converts to left-hand by moving the toe stop to the opposite side of the face fixture.


Disclaimer: Lead times vary by machine/tool from 0 to 3 weeks. Once you place your order, we will notify you within one business day of your expected ship date.
SKU: N/A Categories: , ,


100% Accurate Measurements | The TourGauge Digital Irons Machine has precise measuring gauge assemblies unlike competitors’ machines that use travel rods that flex and become loose to create inaccurate and inconsistent readings. The digital display makes it easy to record loft and lie measurements. The machine easily bends irons made from 17-4 & 431 stainless steel and forged carbon steel and is able to measure and bend left- or right-hand irons in the same fixture. Easy to use, an operator can adjust a full set of irons in 10 minutes or less.

Additional Machine Features:

  • Clamping Fixtures
  • Magnetized Shaft Cradle
  • Measures Loft/Lie Simultaneously in ¼-Degree Increments
  • CNC Milled
  • Powder Coat Base Plate
  • Eliminates Operator Error
  • Adjust A Full Set Of Irons In 10 Minutes Or Less
  • Completely Assembled
  • Includes Angle Charts, 27’ Roll Face Fixture Tape, 27” Adjustable Bending Bar, Online Manual and AC Transformer

No Spec Gauge Required

All Mitchell Machines double as a specification gauge that accurately measures with their measuring gauges. No spec gauges are required to measure angles. Competitor’s machines do not compare to the secure clamping and bending capability of Mitchell Machine. Steelclub® and TourGauge® Technology sets the “Industry Standard” worldwide.

Replacement Part(s):

Mitchell Golf SAMI/TGDIM – Iron Sole Rest Set

Mitchell Golf SAMI/TGDIM Brass Sole Rest Set

Mitchell Golf SAMI/SAMSI/TGDIM – Top Clamp Assembly

Mitchell Golf Toe Stop

Mitchell Golf 1/4″ X 27′ Face Fixture Tape

Mitchell Golf Top Clamp Aluminum Pad (Pack Of 5) For Angle Machines

Mitchell Golf SAMI/TGDIM – Back Iron Clamp Weldment

Mitchell Golf Miniature Shaft Encoder

Mitchell Golf Digital Encoder Cable

TourGauge Digital Angle Machine Display Unit

Mitchell Golf Transformer

Additional information

Weight 37 lbs
Mounting Options

W/ Floor Mount Stand
