Mitchell Golf TourGauge Irons Machine

Mitchell® Machines – #1 On Tour Worldwide – 29 Years

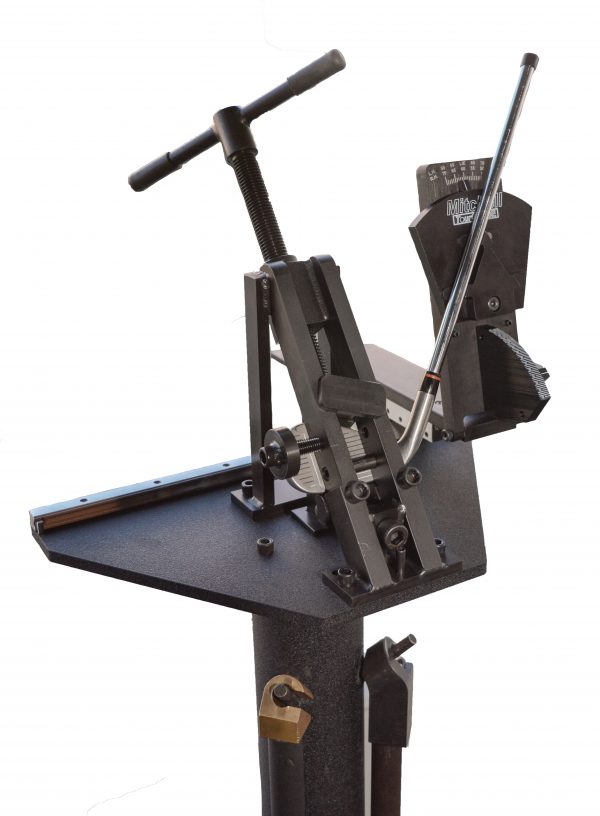

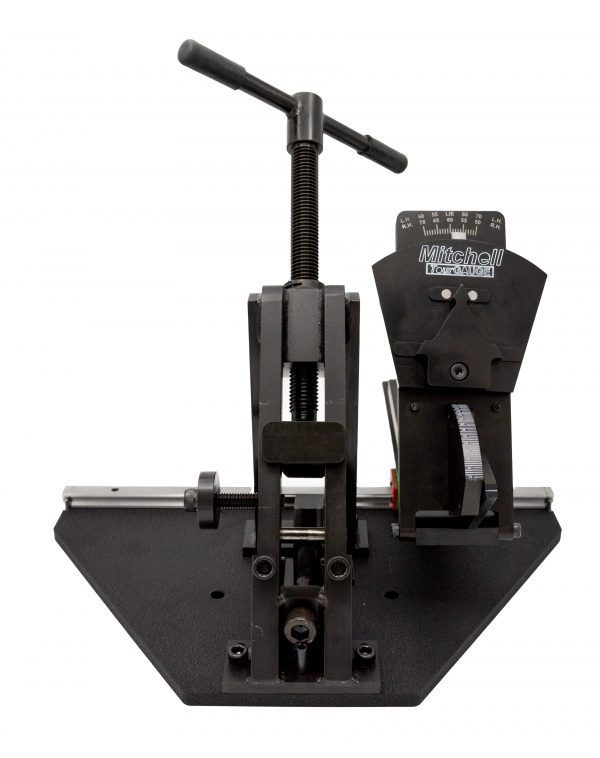

The TourGauge® Irons Machine is quick and easy to use. The aluminum slide-bearing gauge assembly can measure both right- and left-hand irons. Operators can set angles within 1/4° increments, and the machine easily converts to left-hand by moving the toe stop to the opposite side of the face fixture.


Disclaimer: Lead times vary by machine/tool from 0 to 3 weeks. Once you place your order, we will notify you within one business day of your expected ship date.
SKU: TGIM Categories: , ,


The TourGauge Irons machine utilizes a precision aluminum slide bearing gauge assembly that tracks on a precision ground slide rail for measuring both right- and left-hand irons.  The machine converts to left-hand by moving the toe stop to the opposite side of the face fixture.  It has a magnetized shaft cradle that measures loft and lie simultaneously.

The TourGauge has the same secure clamping and bending capability as all Mitchell machines.  All irons made from 17-4 & 431 stainless steel and forged carbon steel can be accurately measured and bent.  This precision machine is the quickest and easiest to use in the industry.  It is ideal for use by all industry professionals.

  • Measures right- and left-hand irons
  • CNC Milled
  • Aluminum Slide-Bearing Gauge Assembly
  • Magnetized Shaft Cradle
  • Measures Loft/Lie Angles Simultaneously
  • Set Angles Within ¼ Degree Increments
  • Quick and Easy to Use
  • Eliminates Operator Error
  • Adjusts a Full Set of Irons in 10 Minutes or Less
  • Measures and Bends in the same Fixture
  • Easily bends 17-4 & 431 Stainless Steel
  • Easily Bends Forged Carbon Steel
  • Completely Assembled

Complete System Comes With:

  • Adjustable Bending Bar
  • Stand with Mounting Hardware
  • Angle Charts
  • Face Fixture Tape

Read More…

Replacement Part(s):

Mitchell Golf SAMI/TGDIM – Iron Sole Rest Set

Mitchell Golf SAMI/TGDIM Brass Sole Rest Set

Mitchell Golf SAMI/SAMSI/TGDIM – Top Clamp Assembly

Mitchell Golf Toe Stop

Mitchell Golf 1/4″ X 27′ Face Fixture Tape

Mitchell Golf Top Clamp Aluminum Pad (Pack Of 5) For Angle Machines

Mitchell Golf SAMI/TGDIM – Back Iron Clamp Weldment
